DT型電動推桿支架安裝尺寸表
|
|
序號
|
型號
|
L
|
L1
|
h
|
h1
|
b
|
b1
|
4-Ф
|
|
1
|
DT50
|
80
|
20
|
130
|
160
|
50
|
80
|
9
|
|
2
|
DT100
|
130
|
37.5
|
188
|
266
|
75
|
130
|
14
|
|
3
|
DT300
|
152
|
37.5
|
204
|
242
|
75
|
130
|
14
|
|
4
|
DT500
|
170
|
37.5
|
214
|
254
|
75
|
130
|
14
|
|
5
|
DT700
|
170
|
35
|
224
|
264
|
75
|
130
|
14
|
|
6
|
DT1000
|
190
|
47.5
|
238
|
284
|
93
|
160
|
14
|
|
7
|
DT1600
|
220
|
|
344
|
410
|
100
|
160
|
18
|
|
|
|
|

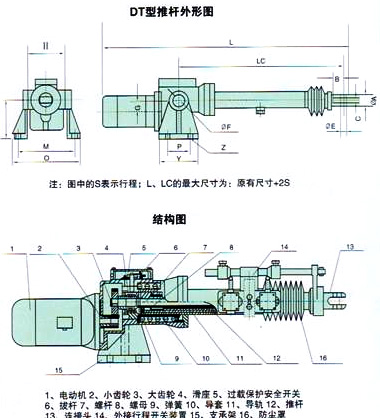

DT型電動推桿主要技術參數、外形尺寸表 說明：表中行程的確定，由用戶可在范圍內任選
|
|
序號
|
型號
|
推力
|
功率
(K
W)
|
速度
(mm
/s)
|
行程
S(mm)
|
LC
|
Ф1
|
Ф2
|
Ф3
|
Ф4
|
Ф5
|
Ф6
|
A
|
A1
|
B
|
C
|
(C1)
|
(C2)
|
D
|
E
|
L1
|
L2
|
L3
|
L4
|
LO
|
|
(kg
.f)
|
(K
N)
|
Lmin
|
Lmax
|
|
1
|
DT50
|
50
|
0.5
|
0.06
|
42
|
100-300
|
128+S
|
128+2S
|
85
|
42
|
23
|
23
|
18
|
6
|
20
|
30
|
10
|
33
|
71
|
42.5
|
80
|
16
|
47
|
83
|
12
|
21.5
|
120
|
|
2
|
DT100
|
100
|
1.0
|
0.12
|
42
|
100-600
|
207+S
|
207+2S
|
112
|
57
|
34
|
34
|
25
|
10
|
35
|
48
|
16
|
36
|
78
|
65
|
112
|
20
|
78
|
109
|
18
|
40
|
200
|
|
3
|
DT300
|
300
|
3.0
|
0.37
|
42
|
100-800
|
231+S
|
231+2S
|
130
|
63.5
|
40
|
40
|
25
|
12
|
35
|
48
|
20
|
48
|
86
|
72.5
|
130
|
20
|
65
|
155
|
22
|
40
|
200
|
|
4
|
DT500
|
500
|
5.0
|
0.75
|
50
|
100-800
|
286+S
|
286+2S
|
155
|
70
|
42
|
42
|
35
|
14
|
42
|
58
|
20
|
59
|
95
|
78
|
140
|
25
|
70
|
197
|
22
|
50
|
255
|
|
5
|
DT700
|
700
|
7.0
|
1.10
|
50
|
200-1000
|
298+S
|
298+2S
|
160
|
80
|
46
|
46
|
35
|
16
|
45
|
58
|
20
|
67.5
|
100
|
75
|
150
|
25
|
70
|
194
|
22
|
50
|
265
|
|
6
|
DT1000
|
1000
|
10
|
1.10
|
50
|
200-1200
|
298+S
|
298+2S
|
170
|
80
|
46
|
46
|
35
|
16
|
45
|
58
|
20
|
67.5
|
102
|
100
|
154
|
25
|
70
|
218
|
22
|
50
|
265
|
|
7
|
DT1600
|
1600
|
16
|
2.20
|
50
|
200-1500
|
310+S
|
310+2S
|
205
|
90
|
62
|
62
|
35
|
25
|
50
|
65
|
30
|
91.5
|
124
|
110
|
240
|
30
|
112
|
248
|
35
|
58
|
325
|
|
